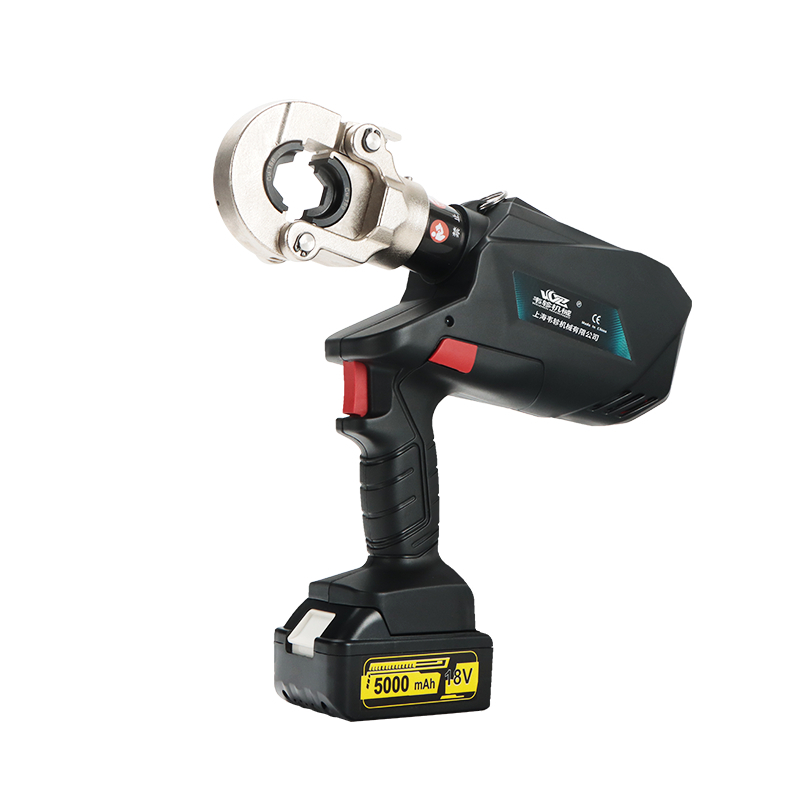

Model: | EK-300 Hydraulic Battery Powered Crimping Tool |
Max. crimping force: | 60KN |
Crimping range: | 10-300 mm2 |
Stroke: | 17mm |
Hydraulic oil: | Shell Tellus T15# |
Ambient temperature: | -10 - 40℃ |
Battery: | 18v 5.0Ah Li-Ion |
Crimping cycle: | 3s-6s(depending on the connector size) |
Crimp/charger: | Approx. 260 crimps (Cu150 mm2) |
Charging voltage: | AC 100V〜240V; 50〜60Hz |
Charging time: | Approx.1.5hours |
OLED display: | display voltage, temperature, crimping times, errors information |
Accessories: | |
Crimping die (mm2): | 10.16.25.35.50.70.95.120.150.185.240.300 |
Battery: | 2 pcs |
Charger: | 1 pcs |
1. 360° flip-top latch crimping head, working atany site
2. Pistol type tool body design for better balance and easy handing
3. Double Piston pump and powerful motor ensure quick crimp
4. Automatically fully retract ram and stop motor when complete crimp
5. Manually retract ram in case of need
6. LED illuminate work area & low battery charges or lacking pressure, an acoustic signal sounds and led flash
7. Li-ion battery with high capacity and require short charging time
