Availability: | |
---|---|
PDF Export | |

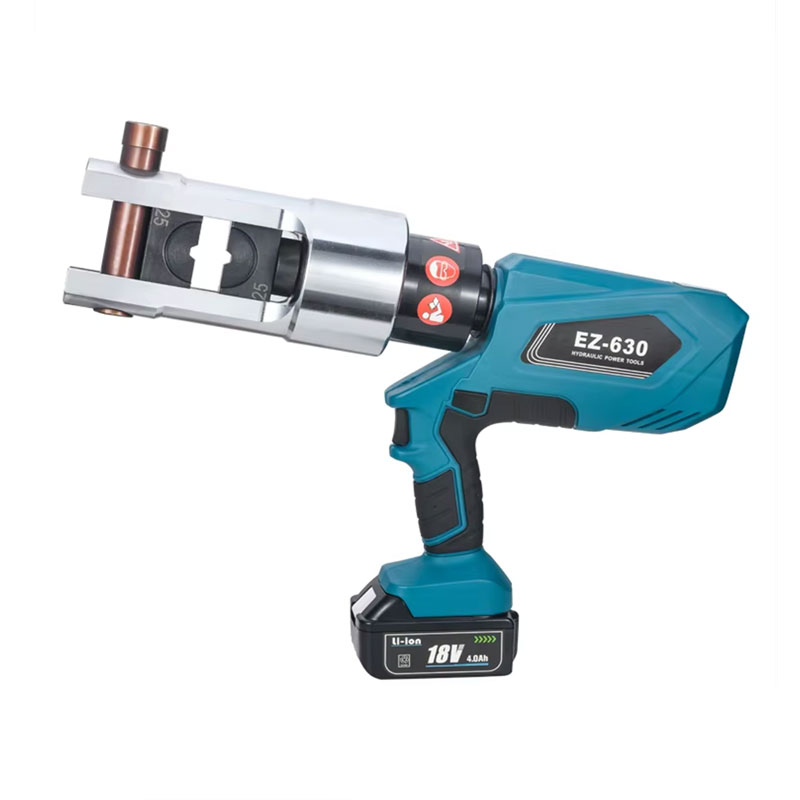

Model: | EZ-630 Large Tonnage Rechargeable Hydraulic Clamp |
Max. crimping force: | 250KN |
Crimping range: | 25-630 mm2 |
Itinerary: | 20mm |
Hydraulic oil: | Shell Tellus T15# |
Ambient temperature: | -10 - 40℃ |
Battery: | 18v 5.0Ah Li-Ion |
Number of Crimps: | 130 times per saturation voltage(Copper Wire 150mm2) |
Packing: | High strength Plastic Box |
Charging voltage: | AC 100V〜240V; 50〜60Hz |
Charging time: | Approx.2hours |
OLED display: | display voltage, temperature, crimping times, errors information |

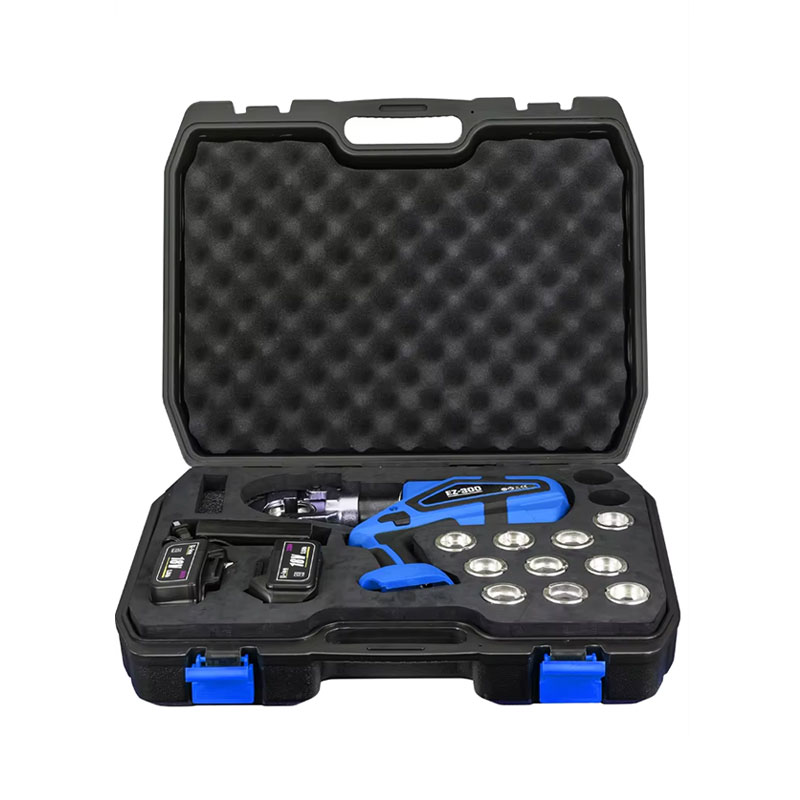

Accessories: | |
Crimping die (mm2): | 25.35.50.70.95.120.150.185.240.300.400.500.630 |
Battery: | 2 pcs |
Charger: | 1 pcs |
Net Weight | 9.2kg |
Gross Weight | 23kg |
Features
1.Head Can be Rotated 350°,two-speed double-acting hydraulic device design.
2.Motor Stops and automatically returns when crimping is complete with manual return if necessary.
3.18V 5.0AH high performance Lithum Battery,One switch can Control all tool functions.
4.PVC Shell reinforced body is not easy to break,built-in safety Value device.
5.Automatic Power off function, the system will automatically power off after the product is not applicable ,so as not to cause losses.
