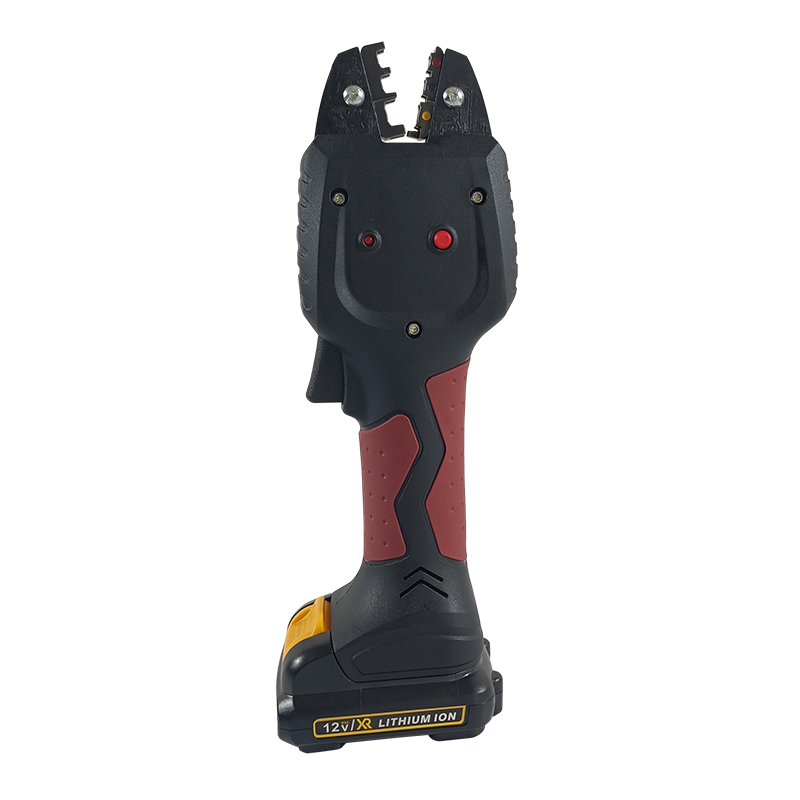

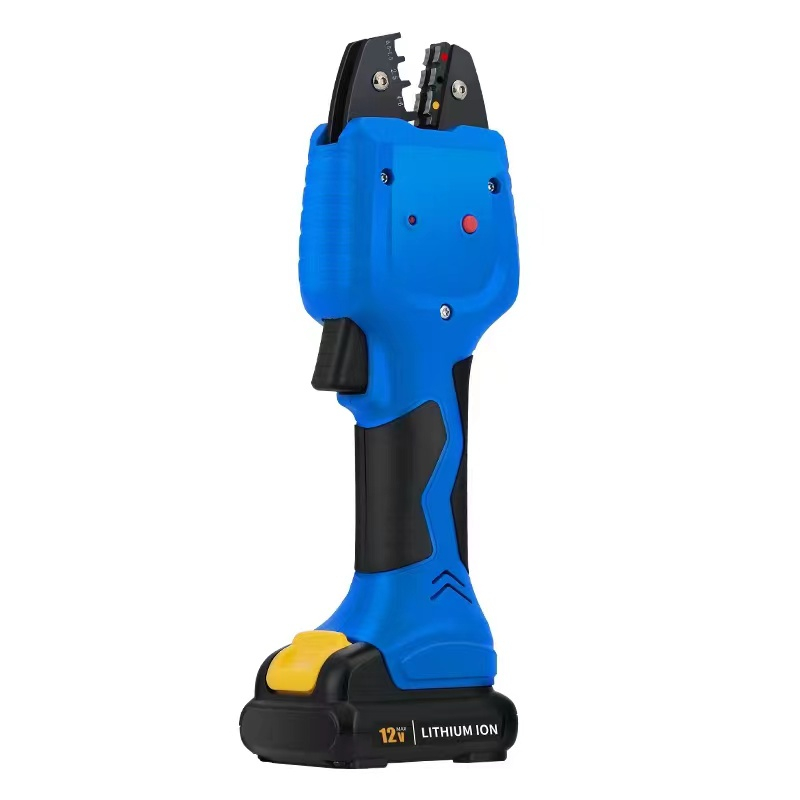

ZC-B50KM Battery Powered Crimping Tool

ZC-B50KM Battery Powered Crimping Tool is vertical cold press clamping tool. We provide all-copper motor strong power, which can let you easily handle high-intensity work. A variety of replaceable dies can be used, . This ZC-B50KM Rechargeable Electric Cold Crimping Tool Terminal Small Power Pliers is ideal hydraulic tool for cable conductor copper and aluminum terminal interface and end capping and intermediate connection of link pipes.
Availability:

PDF Export

Specification

Model:

ZC-B50KM Battery Powered Crimping Tool

Max.Output Force:

15KN

Crimping Range:

a) 0.25-50mm²
(Cord end terminal);
b) 0.5-10mm²
(round,fork-shaped bare terminal);
c) 0.5-10mm²
(pre-insulated terminal);
d) 1-10mm²ordinary hexagon

Battery:

12V 2.0Ah Li-Ion

Charging time:

About 30minutes

Crimping Time

1.5s

Life time

35000times

Weight

0.88KG


Features

1.Simple and safe: one-button operating concept for controlling all tool functions

2.Simple and safe: automatic retraction when operation is complete

3.Overload Protection。

4.Imported motor with long life ,can use 35000times.

4.Very low weight and high speed for maximum efficiency

5.Powerful drive technology for fatigue proof operations

6.LED for work area illumination

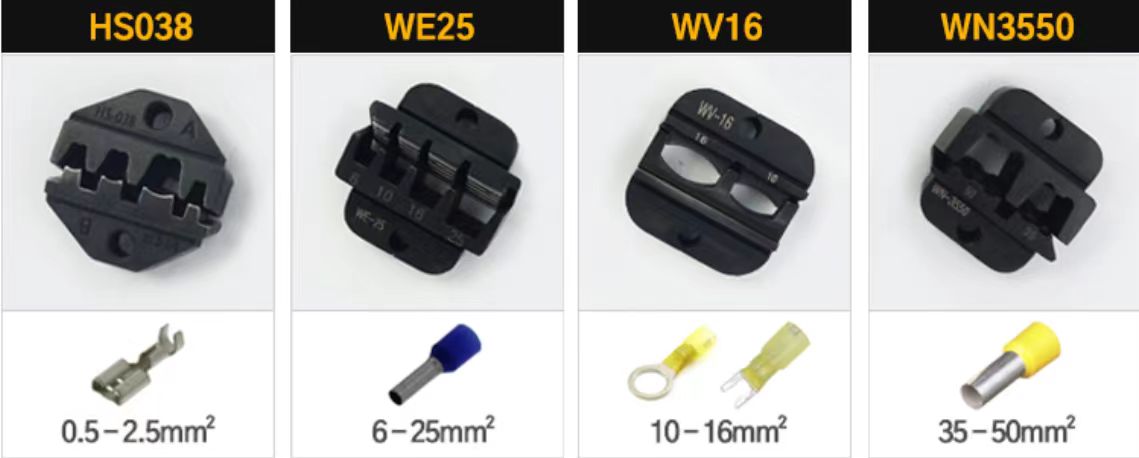

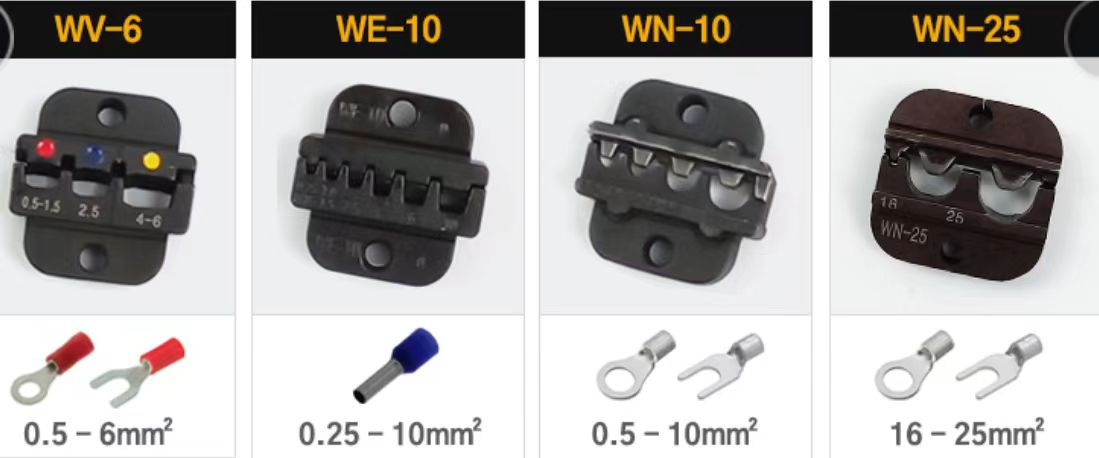

dies 1

dies
