What Problems Can Be Caused by Improperly Crimped Lugs?

In electrical systems, properly crimped lugs are essential for ensuring reliable and safe connections. However, when lugs are improperly crimped, they can lead to a host of issues, from minor inefficiencies to severe safety hazards. This article will delve into the problems caused by improper crimping, how to recognize them, and best practices for avoiding these pitfalls.

Common Problems Caused by Improperly Crimped Lugs

Poor Electrical Conductivity

An improper crimp can result in loose connections, leading to increased electrical resistance. High resistance creates heat, which may degrade the wire insulation and increase the risk of failure over time.

Overheating and Fire Hazards

Poorly crimped lugs can cause localized overheating. This may lead to melting of surrounding components, sparking, and even fire, posing significant safety risks in both residential and industrial applications.

Mechanical Weakness

A weak crimp cannot withstand vibrations or mechanical stresses, leading to premature failures, particularly in automotive or industrial settings where such forces are common.

Corrosion and Oxidation

Loose connections can expose the wire to moisture and air, accelerating corrosion and oxidation. This degradation further reduces conductivity and shortens the lifespan of the connection.

Inconsistent Signal Transmission

In applications like telecommunications or data transfer, improper crimping can cause inconsistent signal transmission, leading to performance issues and downtime.

Failure to Meet Industry Standards

Improper crimping often fails to meet the standards set by industry regulations, which can result in failed inspections and legal liabilities for businesses.

How to Recognize Improperly Crimped Lugs

Visible Gaps: A well-crimped lug should have no visible gaps between the wire and the lug.

Loose Wires: Tug gently on the wire; it should not move within the lug.

Deformed Lug: Over-crimping can deform the lug, reducing its mechanical strength and reliability.

Discoloration: Overheating from poor conductivity often leads to discoloration around the connection.

Best Practices for Proper Crimping

Use the Right Tools

Always use high-quality crimping tools designed for the specific lug and wire size. Avoid generic tools that may not apply the correct pressure.

Follow Manufacturer Guidelines

Adhere to the manufacturer’s specifications for crimping force, tool selection, and technique.

Inspect Your Work

Perform a visual and mechanical inspection of each crimp to ensure it meets standards.

Test Connections

Use multimeters or specialized testers to verify electrical conductivity and mechanical integrity.

Train Your Team

Ensure that all personnel handling crimping are adequately trained and understand the importance of proper technique.

Recommended Tools for Effective Crimping

To achieve professional and reliable results, investing in the right tools is essential. Here are some top recommendations:

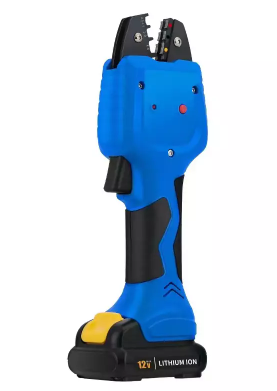

ZC-B50KM Battery Powered Crimping Tool

This tool ensures consistent pressure for a secure and reliable connection.

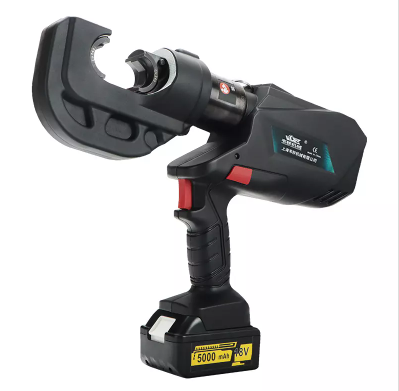

EK-400 Hydraulic Battery Powered Crimping Tool

Ideal for precision crimping, particularly in high-performance applications.

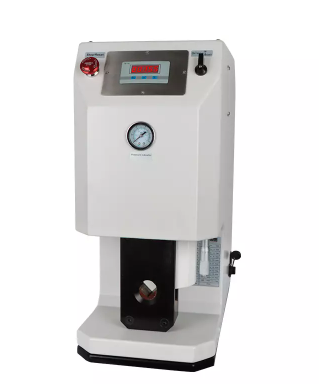

ZC-AH185F Pneumatic hydraulic crimping machine

Manual and foot control, adaptive without changing molds, combines powerful performance and precision.

Improperly crimped lugs can lead to significant electrical, mechanical, and safety issues. By understanding these problems and investing in proper tools and training, you can ensure reliable, long-lasting connections. Don’t compromise on quality—the right tools and techniques make all the difference in achieving safe and efficient electrical systems.
