Copper pipe crimping is a popular method for connecting copper pipes in plumbing and HVAC systems. This technique provides a durable, leak-proof seal, making it an essential skill for both professional plumbers and DIY enthusiasts. If you're wondering how to use a copper pipe crimping tool, this step-by-step guide will walk you through everything you need to know. By the end, you'll be ready to create secure, reliable connections for your copper piping projects.


What is a Copper Pipe Crimping Tool?


A copper pipe crimping tool is a specialized device designed to connect copper pipes to fittings with a crimped ring. The tool applies a precise amount of pressure to the crimp ring, creating a tight, leak-proof seal between the pipe and the fitting.


There are two main types of crimping tools: manual and powered. Manual crimping tools are more common for DIY projects, while powered tools are used by professionals for faster, high-volume work.

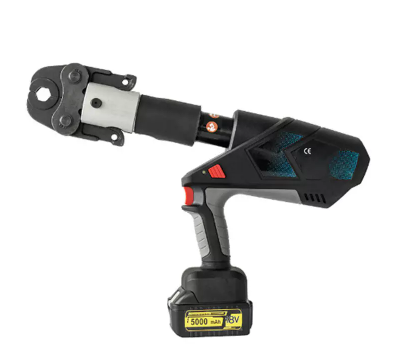

EK-1550B Battery powered hydraulic Stainless Steel Clamping Tool

Why Use a Copper Pipe Crimping Tool?


Using a copper crimping tool has several advantages over other methods like soldering or welding. Here are a few reasons why crimping is often the preferred choice for pipe connections:


1. Durability: Crimped joints are highly durable and resistant to leaks.


2. Speed: Crimping is quicker than traditional soldering, saving time on projects.


3. No Heat Needed: Unlike soldering, crimping doesn’t require high temperatures, making it safer and easier to use in various settings.


For both residential and commercial plumbing, crimping ensures a reliable, long-lasting connection. Whether you're installing a new water supply line or working on HVAC piping, mastering how to crimp copper pipe with the right tool is essential for creating strong, efficient systems.


Materials and Tools Needed


Before you begin, it's important to gather all the necessary materials and tools to ensure a successful crimp. Here's what you'll need:


1. Copper Pipe – The main material for your project.


2. Crimp Rings – These rings are placed around the pipe before crimping.


3. Copper Pipe Crimping Tool – The tool that will apply pressure to the crimp ring.


4. Pipe Cutter – To cut the copper pipe to the required length.


5. Deburring Tool – To smooth out the cut edges of the pipe to avoid damage to the crimp ring.


Having the right tools on hand makes the crimping process smoother and ensures a leak-free result.


Step-by-Step Guide on How to Use a Copper Pipe Crimping Tool


Now that you're familiar with the tools and materials, let's walk through the step-by-step process for how to use a copper pipe crimping tool:


Step 1: Measure and Cut the Copper Pipe


Start by measuring the length of copper pipe needed for your installation. Once you have the correct measurements, use a pipe cutter to make a clean, straight cut. A precise cut is essential for ensuring the crimped joint fits correctly.


Step 2: Deburr the Pipe


After cutting the pipe, it's important to deburr the edges. Use a deburring tool to remove any sharp edges or burrs from the inside and outside of the pipe. This step is crucial for ensuring that the crimp ring slides on smoothly and forms a tight seal.


Step 3: Position the Crimp Ring


Slide the crimp ring over the pipe, positioning it about 1/8 to 1/4 inch from the end. Ensure that the pipe is fully inserted into the fitting before crimping. Proper alignment of the crimp ring is critical for creating a secure seal.


Step 4: Crimp the Pipe


Place the powered copper pipe crimping tool over the crimp ring, ensuring that the tool's jaws are aligned with the ring. Activate the powered tool, which will automatically apply consistent pressure, compressing the crimp ring tightly around the pipe and fitting. Make sure the crimp is uniform and flush with the pipe surface, with no raised areas or loose spots. Most powered tools will give a signal or indicator light to show that the crimping process is complete. A secure and even crimp is essential to prevent leaks.


Step 5: Inspect the Crimp


After crimping, visually inspect the connection. The crimp should be round and evenly compressed. Use a crimp gauge to check the quality of the crimp if necessary. If the crimp doesn’t look uniform, or if the pipe isn’t fully inserted into the fitting, redo the crimp.


Common Mistakes to Avoid When Using a Copper Pipe Crimping Tool


Even experienced plumbers can make mistakes when using a copper pipe crimping tool. Here are some common errors to avoid:


· Over-tightening or under-tightening the crimp: Too much pressure can damage the pipe, while too little pressure can result in leaks.


· Incorrect pipe alignment: Ensure the pipe is fully inserted into the fitting and the crimp ring is positioned properly.


· Not deburring the pipe: Burrs can interfere with the crimping process and lead to leaks.


· Using the wrong size crimp ring or fitting: Always check the size of the pipe and fitting to match the crimp ring.


Avoiding these mistakes will ensure that your crimping work is done correctly the first time.


Tips for Maintaining Your Copper Pipe Crimping Tool


To extend the lifespan of your copper pipe crimping tool and keep it in good working condition, follow these maintenance tips:


1. Clean the Tool Regularly – After each use, clean the crimping tool to remove any debris, dirt, or corrosion.


2. Lubricate Moving Parts – Apply light oil to the moving parts to prevent rust and ensure smooth operation.


Proper maintenance ensures that your crimping tool stays effective for years, delivering high-quality crimps every time.


Troubleshooting Copper Pipe Crimping Issues


If you encounter issues with a crimped joint, don’t worry. Here’s how to troubleshoot:


· If the crimp doesn’t hold: Recheck the pipe insertion and ensure the crimp ring is positioned correctly. You may need to redo the crimp.


· If there’s a leak: Double-check the alignment of the pipe and fitting. A poor seal can cause leaks, so redo the crimp if necessary.


· Fixing a bad crimp: If a crimp is done incorrectly, use a crimping tool to remove it and replace the crimp ring before crimping again.


Learning how to use a copper pipe crimping tool is an essential skill for any plumber or DIYer. With the right tools, knowledge, and techniques, you can achieve leak-proof, reliable copper pipe connections in no time. Remember to measure accurately, deburr the pipe, and maintain your crimping tool for optimal results.


If you're looking to upgrade your plumbing skills or start your next copper piping project, mastering the crimping technique will save you time, effort, and ensure a long-lasting, durable installation.


FAQs Section


Q1: How long does a crimped copper pipe joint last?


A crimped copper pipe joint can last for decades when done correctly, often outlasting the pipes themselves.


Q2: Can I reuse crimp rings?


No, crimp rings should only be used once. Reusing them may compromise the integrity of the joint.


Q3: Is crimping better than soldering for copper pipes?


Crimping is faster, easier, and requires no heat, making it a safer alternative for most applications. However, soldering may still be preferred in certain situations for a more permanent bond.
